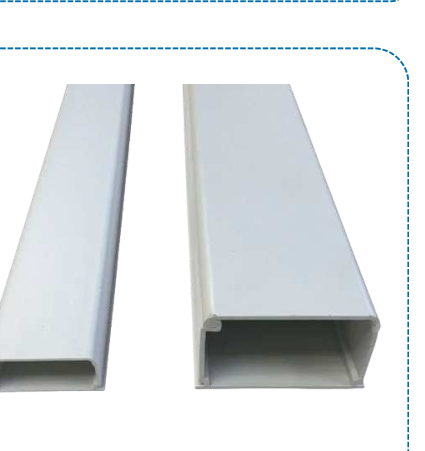

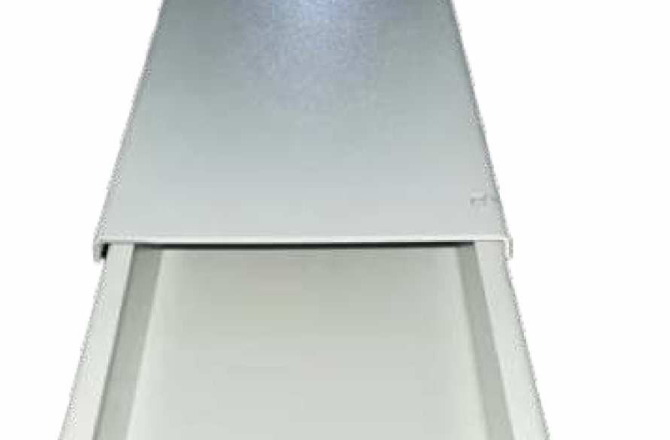

Ceiling Raceway Powder Coated

Features
  • 2 side removable cover; top also removable cover.
  • Height of box depends on the height of the raceways + 15mm.
  • Side & top knock outs on request.
  • Available as GI coated or powder coated finish.
  • Available finishes: powder coating (50-60 microns), painting, pre-galvanized, hot dip galvanized, aluminium and stainless steel.
  • Powder coating thickness 50-60 microns.
Width Height Thickness
50mm 25/40/50 1.2/1.6mm/2mm/2.5mm
75mm 25/40/50 1.2/1.6mm/2mm/2.5mm
100mm 25/40/50/75/100 1.2/1.6mm/2mm/2.5mm
150mm 40/50/75/100/150 1.2/1.6mm/2mm/2.5mm
200mm 40/50/75/100/150 1.2/1.6mm/2mm/2.5mm
250mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
300mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
400mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
450mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
500mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
600mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
750mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
Finishing Specification
Powder Coating 50-60 Microns
Painting Available
Pre-Galvanized Regular 120Gsm / 340Gsm (on request)
Hot Dip Galvanized Regular 65Gsm / 75 to 110 Microns (on request)
Aluminium Available
Stainless Steel Available
Accessories
Powder Coated Ceiling Raceway
Powder Coated Fittings
Bends / Tees / Couplers

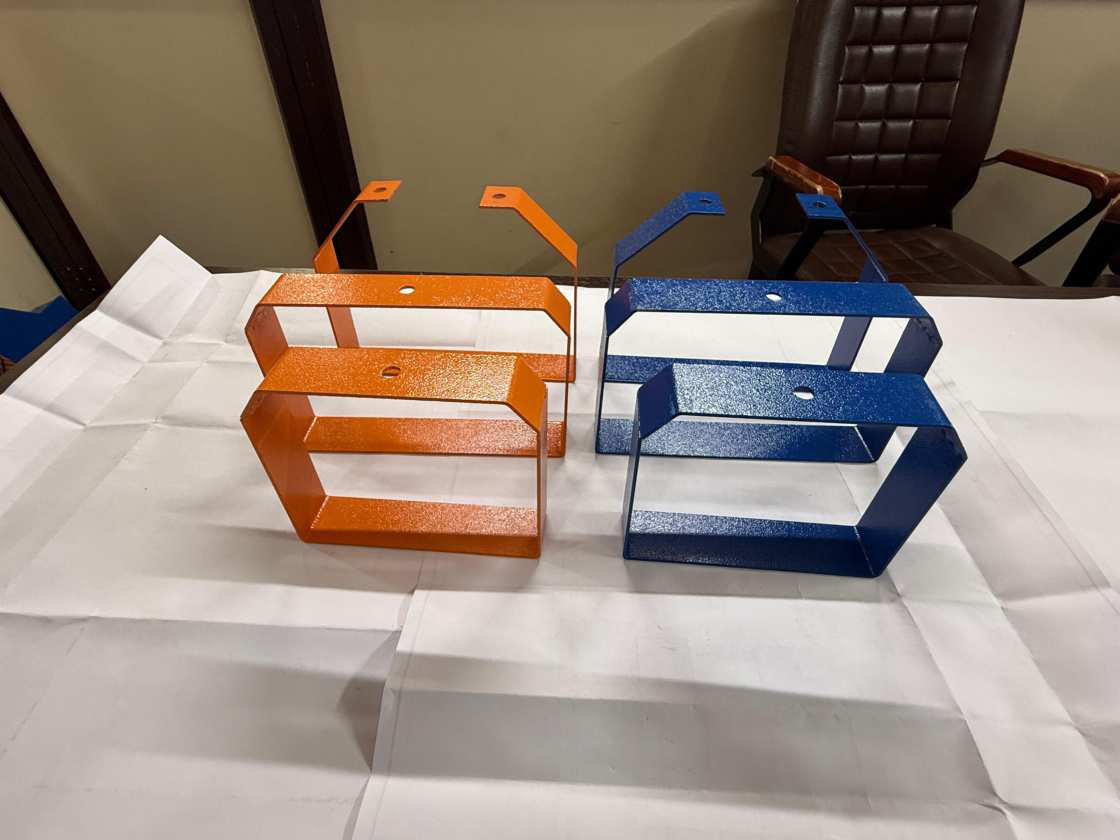

Support Hangers
